The Overall Joint Union , T Type Union Tee High Pressure Forged

The overall joint union, Union tee, high pressure, T type union tee, Forged

The overall joint union is made of high-quality alloy steel forged as a whole. After strict heat treatment, it has the advantages of compact structure, uniform wall thickness, long service life, beautiful and smooth appearance, strong interchangeability of the connecting end, convenient connection and so on. In the bend, joint and other fluid change, the design is thickened to prolong the safe service life, where wall erosion is more serious.

Overall joint union (L type 90° elbow, long radius 90° elbow, T type joint, union tee, Y type union, manifold joint/union, cross joint/union, fish tail joint/union, three-dimensional manifold joint/union, three-dimensional cross joint/union, three-dimensional Y joint/union.)

Working pressure:42 MPa～140 MPa

Nominal diameter:2″～4″

Working temperature:29℃～121℃(PU)/-46℃～121℃(PL)

Material:AA-EE

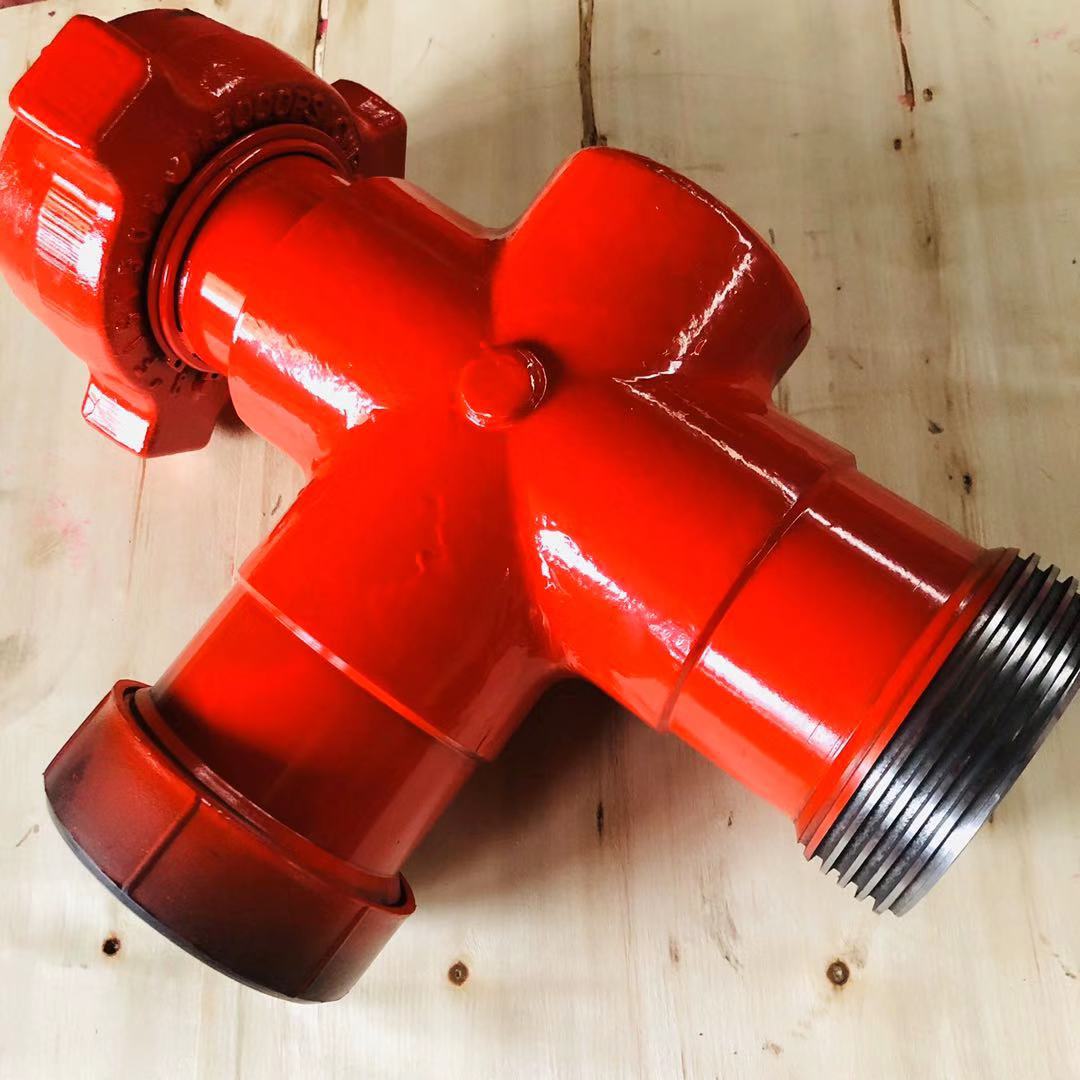

The Overall Joint Union

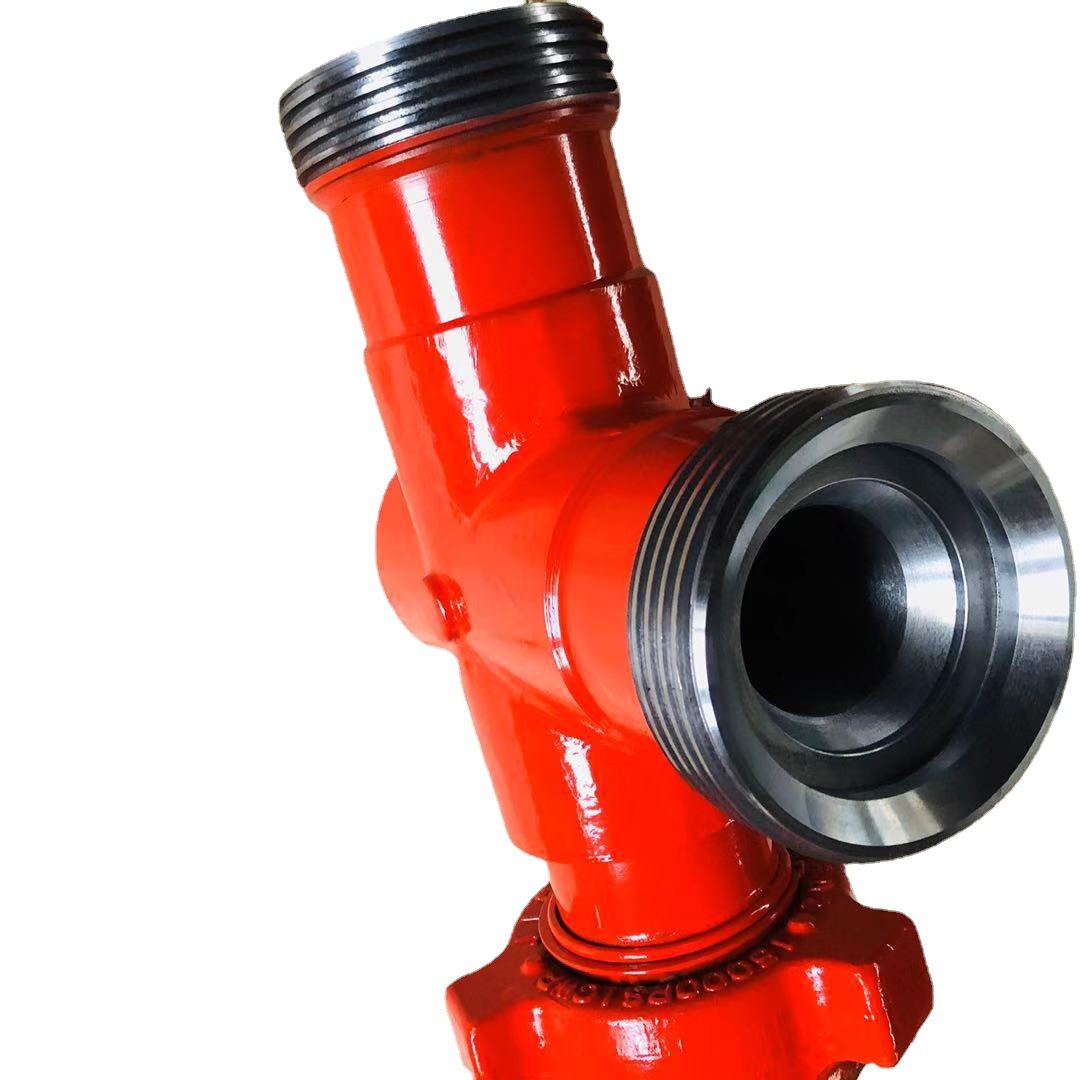

T Type Overall Joint Union

Forged T Type Union Tee
